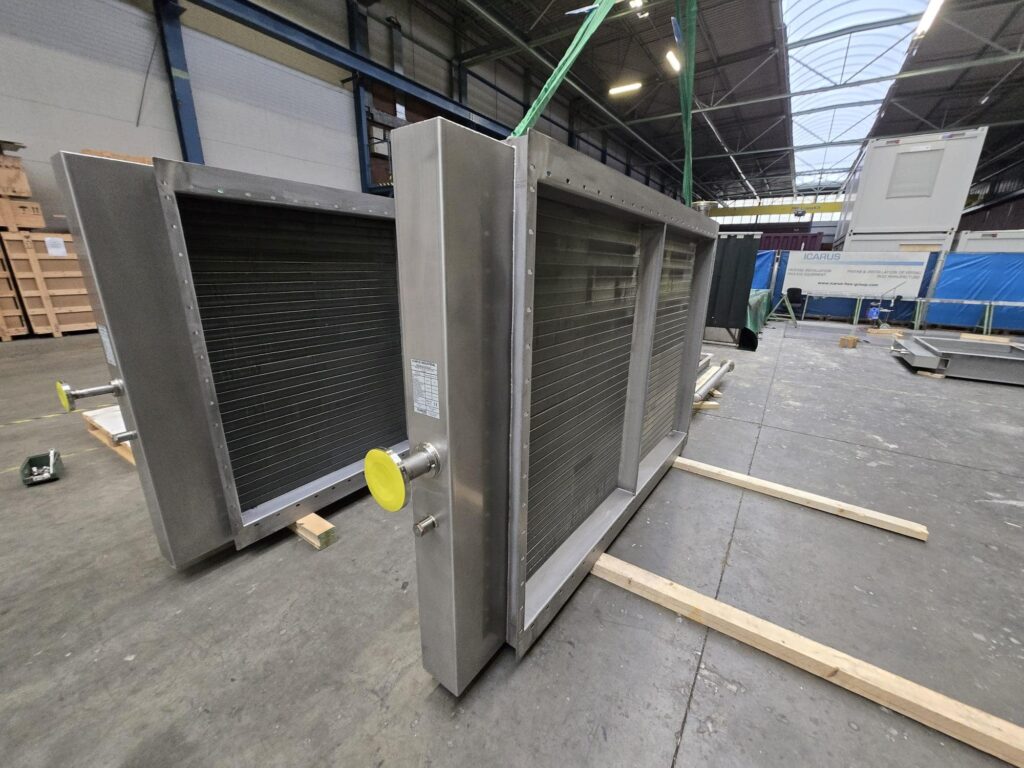

Steam to air finned tube coil

A steam to air finned tube coil operates on a simple yet powerful principle: steam enters the inner tube, releases its latent heat, and condenses as it transfers energy through the tube wall to the surrounding air stream. The air flows across the external fin surface, where the expanded surface area created by the fins significantly improves the heat transfer coefficient. This configuration makes steam coils highly effective for heating air in HVAC systems, air handling units, and industrial heating applications. The resulting condensate flow is directed through properly designed headers and returned through a condensate return system, ensuring stable performance even under varying air temperatures and operating pressures.

The performance of a steam coil depends heavily on its tube and fin configuration. Engineers carefully select fin spacing, fin pitch, and fin collars to balance airflow resistance and thermal efficiency. Common materials include copper tubes with aluminum fins, stainless steel tubes, or galvanized steel components, depending on the environmental conditions and process requirements. Manufacturing methods such as brazing joints, mechanical expansion, or welding ensure strong bonding between tubes and fins while accommodating thermal expansion during operation. Advanced configurations like spiral fins, extruded aluminum finned tubes, or hairpin coil designs help maximize the available secondary heat transfer surface, increasing overall thermal performance in demanding industrial environments.

Steam to air finned tube coils are widely used wherever reliable air heating is required. In HVAC applications, they provide warm air for air handling units, fan coil units, and industrial air conditioning systems. In industrial settings, these coils support processes such as pulp and paper drying, chemical process heating, industrial refrigeration defrost systems, and starch drying operations. They are also commonly integrated into industrial boilers, heat recovery devices, and process gas coolers, where steam serves as a dependable heat source. With robust header assembly design, flexible connection locations, and durable materials, these coils can operate efficiently across a wide range of operating temperatures and pressures, making them an essential component in modern thermal systems.
